VW BOSCH VE FUEL INJECTION PUMP ADAPTER TIMING TOOL
Product Introduction
Bosch Diesel Injection Pump Timing Indicator Tools
This set has a dial gauge with an 8mm shank.
Dial Indicator and Holder

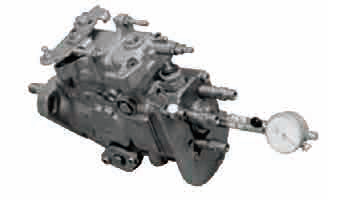

Tools are used for the accurate setting of the Bosch diesel
fuel injection pump timing. The holder screws into the back
of the injection pump, giving a dial indicator reading
necessary for setting the correct pump timing.
This set comes complete with the correct tools for the job.

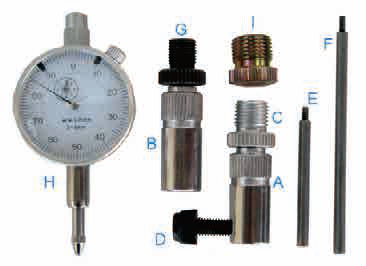

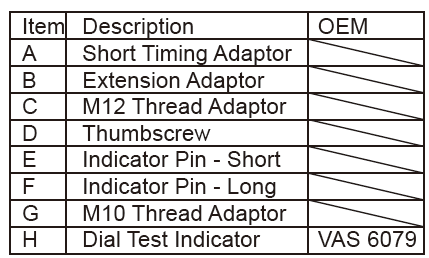

Contents: Metric Dial Indicator, holder plus extension pins
(2) making the timing easy to set as the timing has a range
from 0.83mm to 1.15mm. For use on VW and Audi diesels.
Indicator Holder Set - Suitable for timing Bosch VE injection
pumps. Includes M8, M10 and M12 adapters. To be used in
conjunction with Dial gauge. Application: Bosch VE fuel
pump, Diesel pumps. Indicator holder for both size shanks,
also works with 1981-1986 Volvo 6 cylinder 2.4L diesels,
1989-1994 Dodge 6 cylinder 5.9L diesels.
