TOOL CABINET
Product Introduction
Can combine all the products set we have into the cabinet .

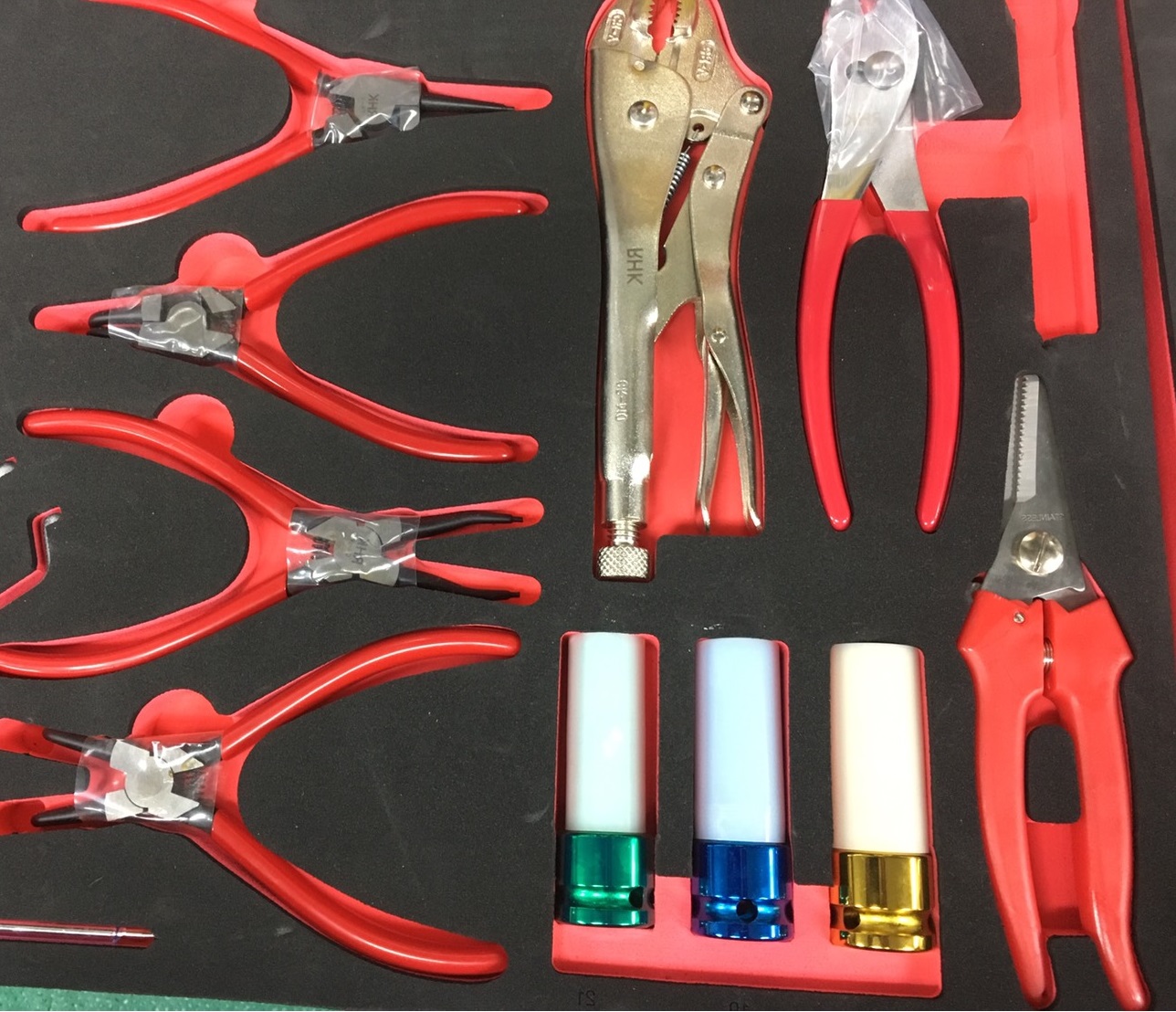

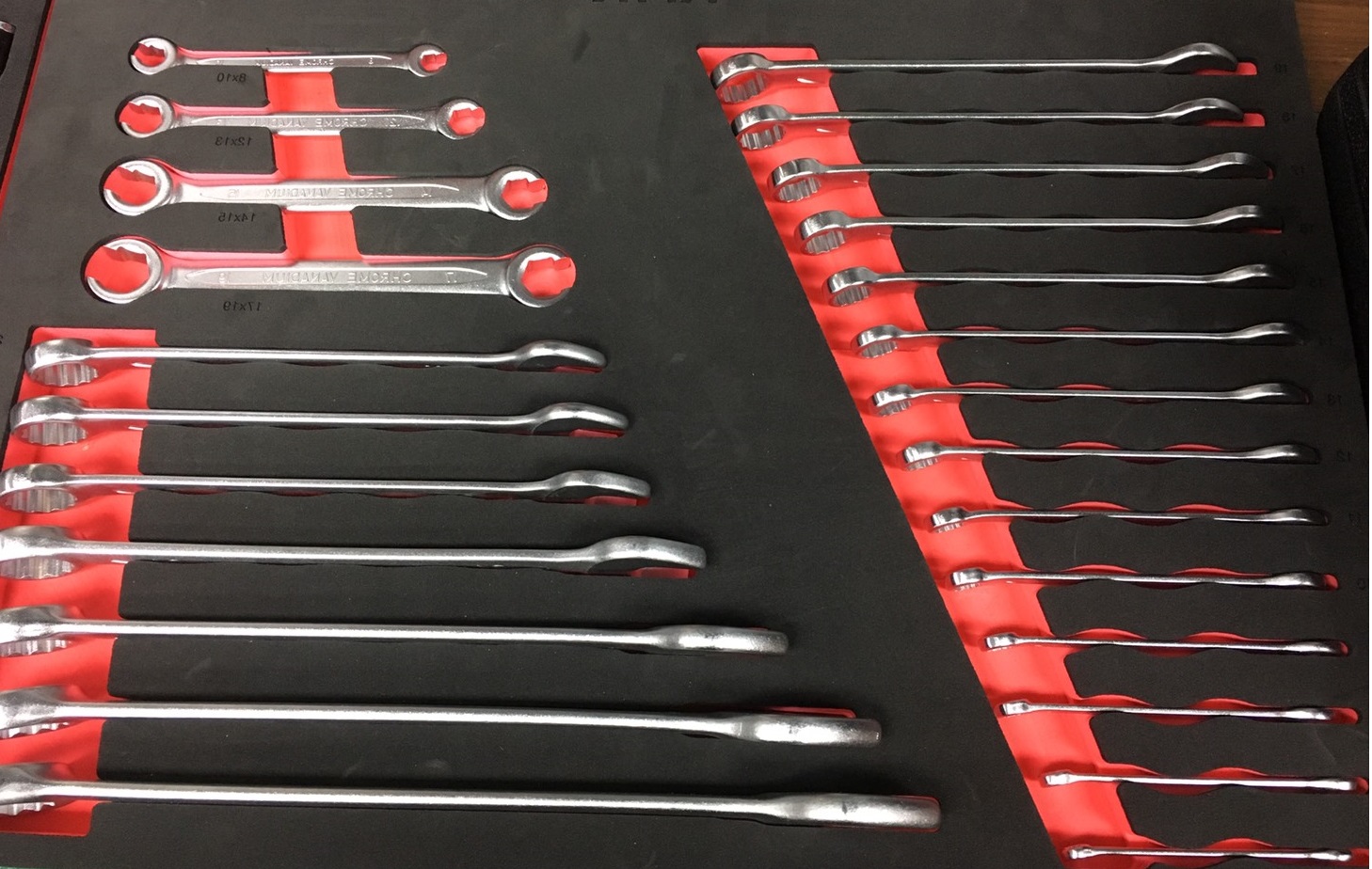

Normally in the market, We can see Timing tools , handtools(Socket bit bitsocket plier wrench ratchet VDE tools.....etc), Easy Tester set, Wheel nut lock socket.set
Otherwise it can try tools like injector cleaner and installing set or brake calipter service set.
Service:
- Customer can design their own set to put inside the cabinet, or choose tools for us to combine them.
- Only empty cabinet is ok.
- Even something don't in our catalog, we can find to customer..
- We can offer other type of cabinet.
- Please contact us for further information.
Other Size of Cabinet
8 DRAWER ROLLER WAGON
OVERALL : 670mm(W) x 460mm(D) x 812mm(H)
OVERALL WITH 5" CASTERS : 670mm(W) x 460mm(D) x 960mm(H)
7 DRAWERS : 576mm(W) x 380mm(D) x 75mm(H)
1 DRAWERS : 576mm(W) x 380mm(D) x 154mm(H)
STEEL THICKNESS :
TOP AND BOTTOM : 1.2mm
BODY : 1.0mm
DRAWER : 1.0mm
(1) BALL BEARING SLIDE
(2) 5"x1 1/4" CASTER(2 FIXED+2 SWIVEL)
Large 7 DRAWER ROLLER WAGON
OVERALL : 1070mm(W) x 460mm(D) x 980mm(H)
OVERALL WITH 6" CASTERS : 1070mm(W) x 460mm(D) x 1150mm(H)
5 DRAWERS : 927mm(W) x 380mm(D) x 100mm(H)
2 DRAWERS : 927mm(W) x 380mm(D) x 153mm(H)
STEEL THICKNESS :
TOP AND BOTTOM : 1.5mm
BODY : 1.2mm
DRAWER : 1.0mm
(1) BALL BEARING SLIDES
(2) WITH 15mm P.B. BOARD 1 PC
(3) WITH SIDE HANDLE 1 PC
(4) 6"x2" CASTER(2 SWIVEL + 2 SWIVEL WITH BRAKE)
(5) ONE DRAWER OPEN AT A TIME SAFETY SYSTEM
For More Size, Please contact us!
