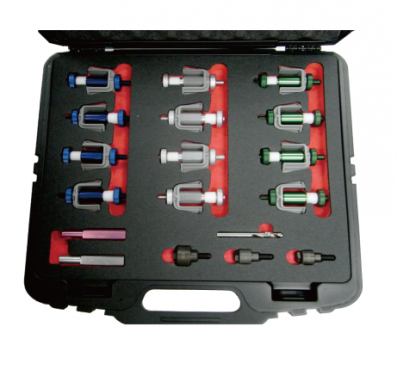

ASSEMBLY TOOL FOR PDC HOLDER

Item

Description

Annotation

A

Screw Hole Punch ø 18.2 mm

Cutting tool and counter-hold made from metal. Tightening a hexagon nut causes the stamp and die plate to be pressed against each other.

- Replacement part for PDC retainer assembly tool

- For making holes in plastic parts

- ø 18.2 mm

B

Screw Hole Punch ø 26 mm

Cutting tool and counter-hold made from metal. Tightening a hexagon nut causes the stamp and die plate to be pressed against each other.

- Replacement part for PDC retainer assembly tool

- For making holes in plastic parts

- ø 26 mm

C

1 Centering Drift ø 18.2 mm

Pin with support for plastic housing

- Replacement part for PDC retainer assembly tool

- Pin for centering plastic sleeve of PDC retainer

- ø 18.2 mm
